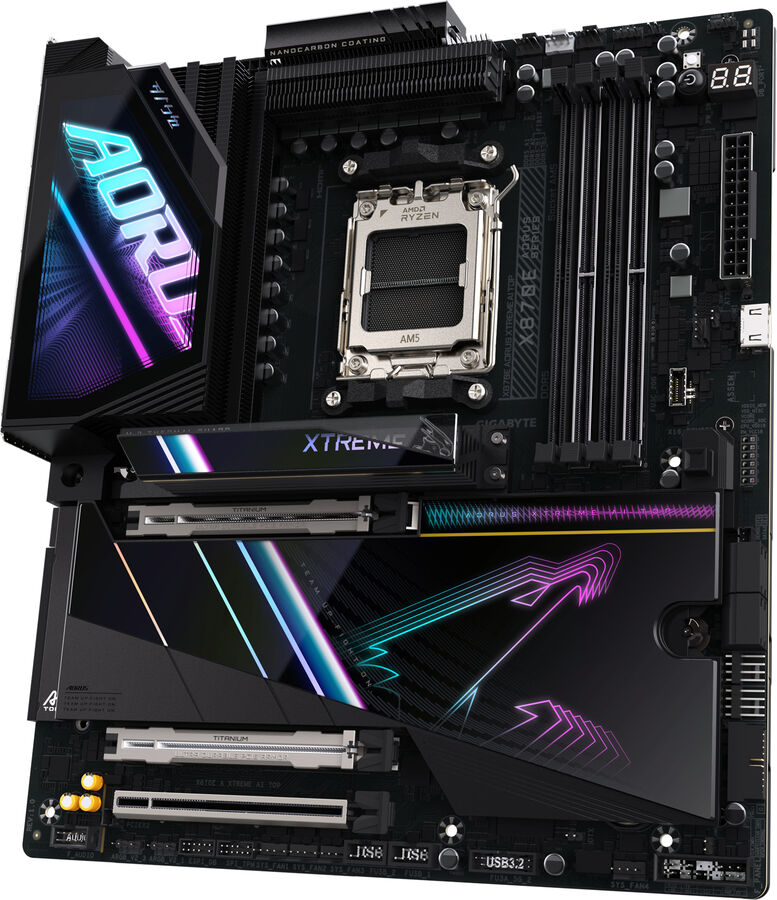

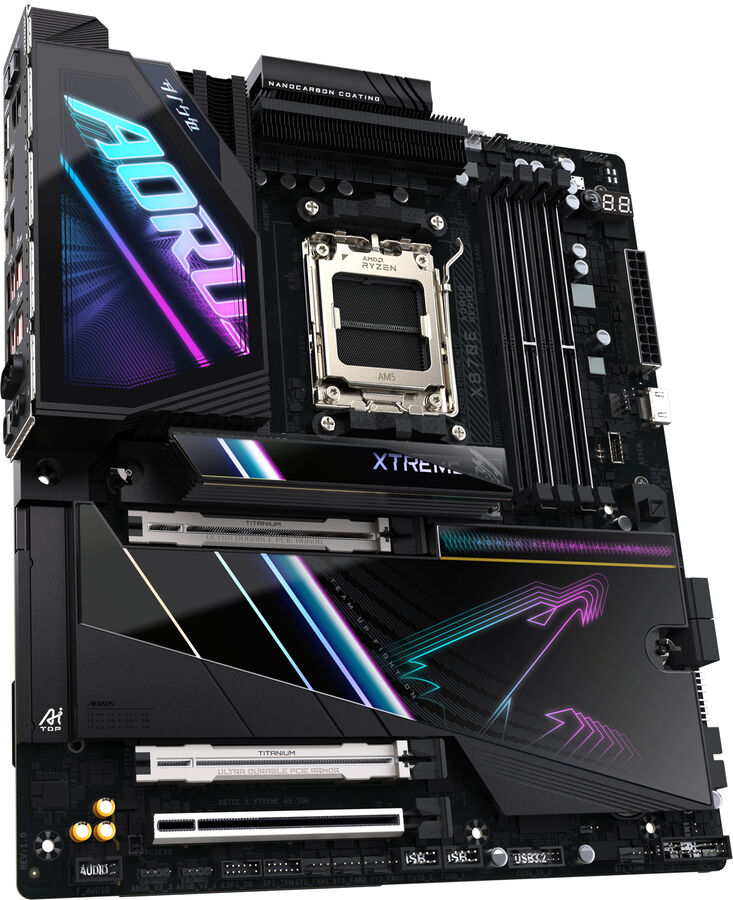

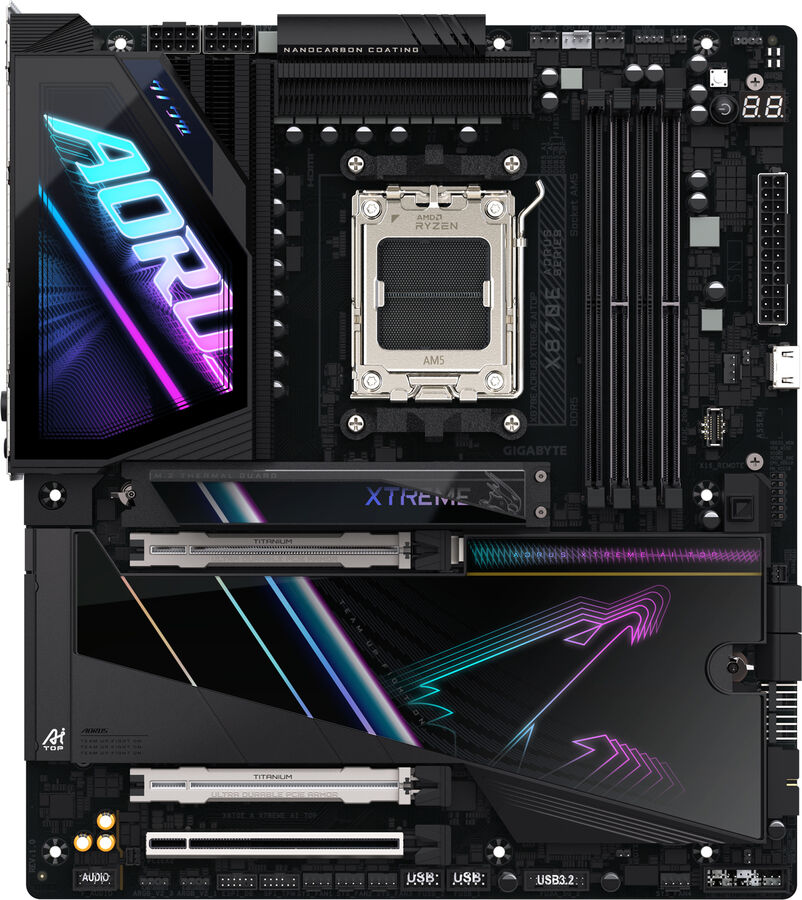

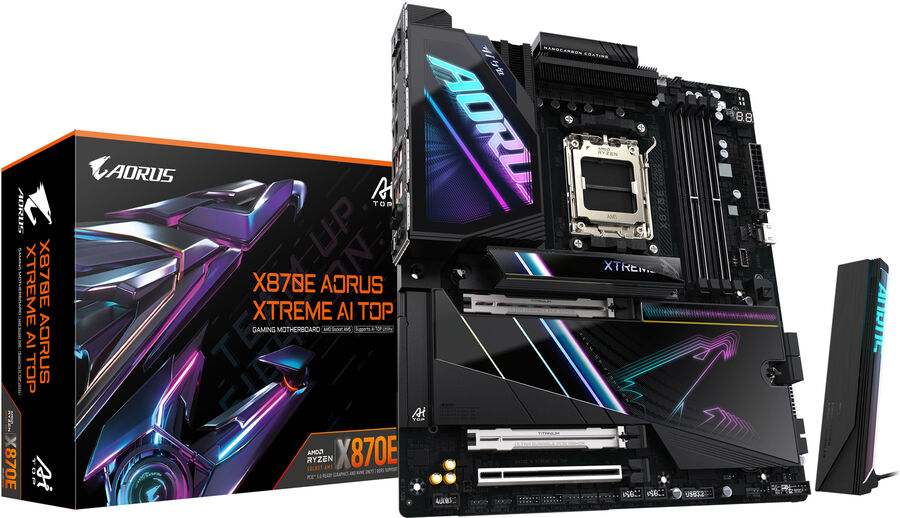

Gigabyte X870E AORUS XTREME AI TOP - AM5 EATX Motherboard

Gigabyte X870E AORUS XTREME AI TOP

This product is currently out of stock at all known shops. Click here to browse the list of in-stock motherboards

View more images

Essentials

Form Factor EATX

Chipset Family AMD

Chipset AMD X870E

Cooling

Cooling Type Passive / Fanless

Processor

Compatible Socket(s) AM5

Memory

Maximum Memory 256 GB

Total Memory Slots 4

Compatible Types DDR5

Supported Speeds 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800

ECC Memory Support

Buffered / Registered Memory Support

Graphics

Multi-GPU Support

GPU / Video Ports

On-Board Graphics CPU Dependent

HDMI

HDMI Quantity 1

HDMI Version 2.1

Communications

Ethernet

Ethernet Quantity 2

Max Ethernet Speed 10 Gbit/s

Bluetooth

Bluetooth Version 5.3

Wi-Fi

Wi-Fi Standard (Maximum) Wi-Fi 7 (802.11be)

PCI Express

PCI Express - Maximum Version PCI Express 5.0

PCI-E x16 Slots 3

Internal Connections

Case Fan Connector Quantity 8

SATA III (6 Gb/s) Ports 4

M.2 Ports

M.2 Port Quantity 4

M.2 Port Types 2280/22110 (M Key), 2280/22110 (M Key), 2280/22110 (M Key), 2280/22110 (M Key)

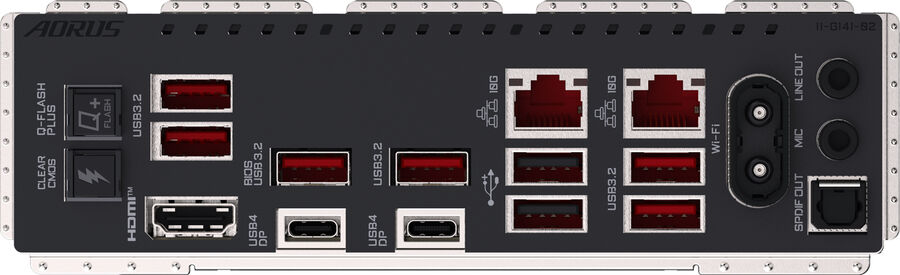

External Connections

USB 2.0 Quantity 2

USB 3.2 Gen 2 (Type-A) Quantity 6

USB 4.0 Quantity 2

Features

RAID Controller

Supported RAID Types RAID 0, RAID 1, RAID 10

Physical Attributes

Width 269 mm

Height 305 mm

Product Codes

Manufacturer Codes X870E AORUS XTREME AI TOP, X870E A XTREME AI TOP

Barcodes 4719331866150, 0889523045886, 889523045886
