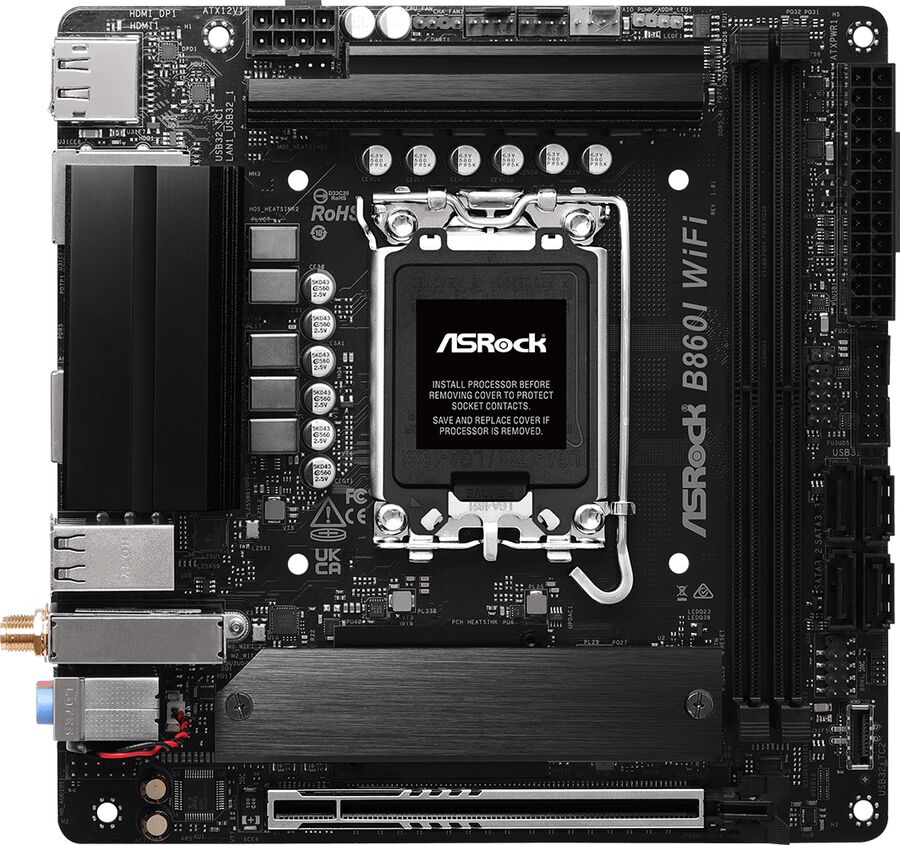

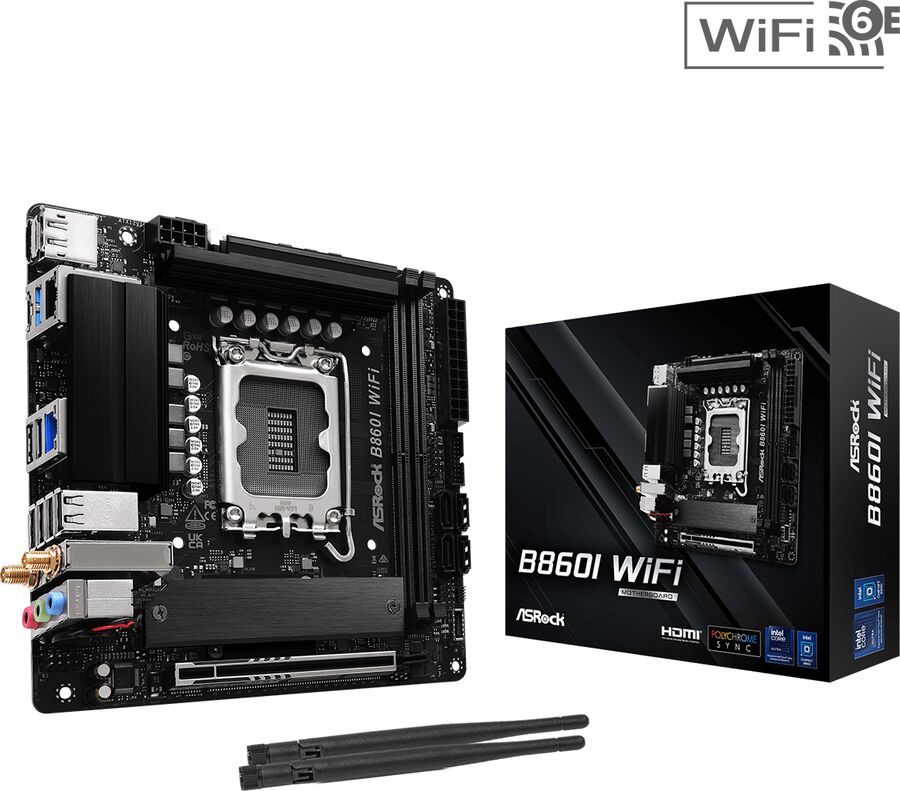

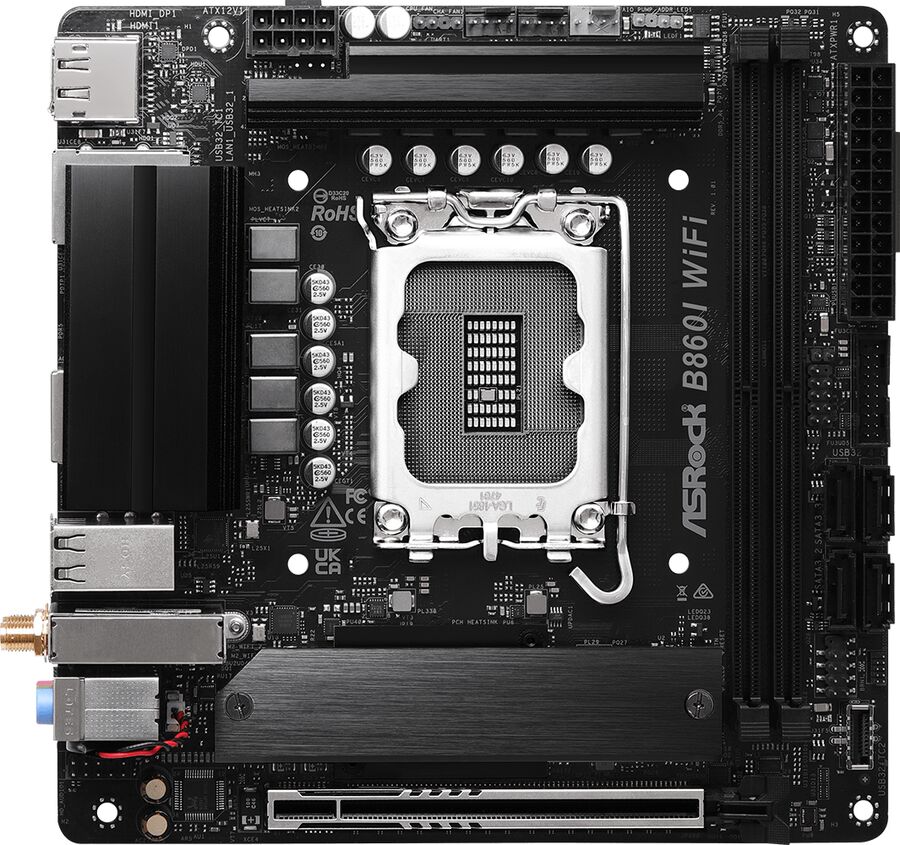

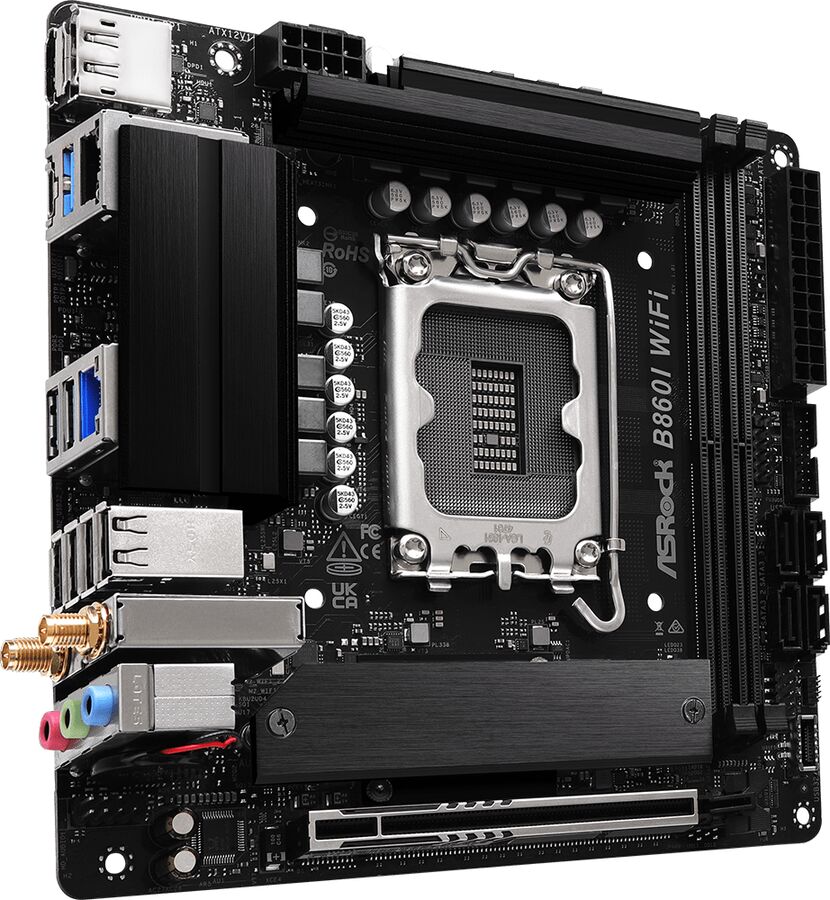

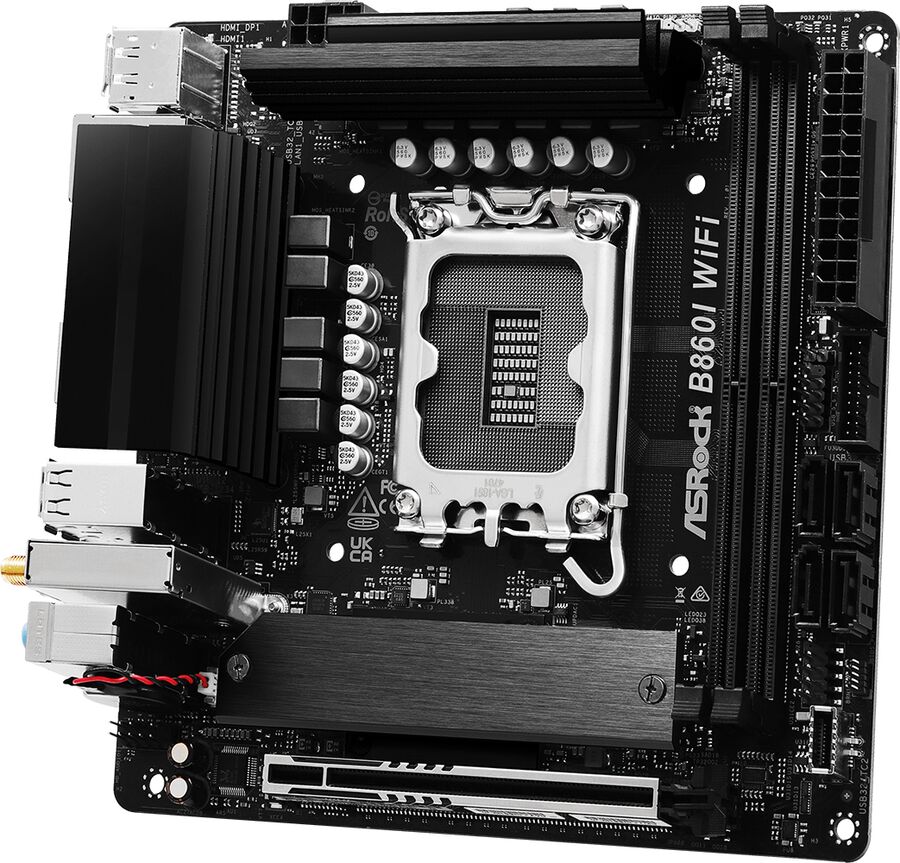

ASRock B860I WiFi - LGA1851 ITX Motherboard

ASRock B860I WiFi

This product is currently out of stock at all known shops. Click here to browse the list of in-stock motherboards

View more images

Essentials

Form Factor ITX

Chipset Family Intel

Chipset Intel B860

Cooling

Cooling Type Passive / Fanless

Processor

Compatible Socket(s) LGA1851

Maximum CPUs 1

Memory

Maximum Memory 128 GB

Total Memory Slots 2

Compatible Types DDR5

Supported Speeds 8933

ECC Memory Support

Buffered / Registered Memory Support

Graphics

Multi-GPU Support

GPU / Video Ports

On-Board Graphics CPU Dependent

DisplayPort

DisplayPort Quantity 1

HDMI

HDMI Quantity 1

HDMI Version 2.1

Communications

Ethernet

Ethernet Quantity 2

Max Ethernet Speed 2.5 Gbit/s

Bluetooth

Bluetooth Version 5.3

Wi-Fi

Wi-Fi Standard (Maximum) Wi-Fi 6E (802.11ax)

PCI Express

PCI Express - Maximum Version PCI Express 5.0

Internal Connections

USB 2.0 Headers 1

USB 3.2 Gen 1 Headers 1

USB 3.2 Gen 2 (Type-C) Headers 1

SATA III (6 Gb/s) Ports 4

M.2 Ports

M.2 Port Quantity 2

M.2 Port Types 2280 (M Key), 2280 (M Key)

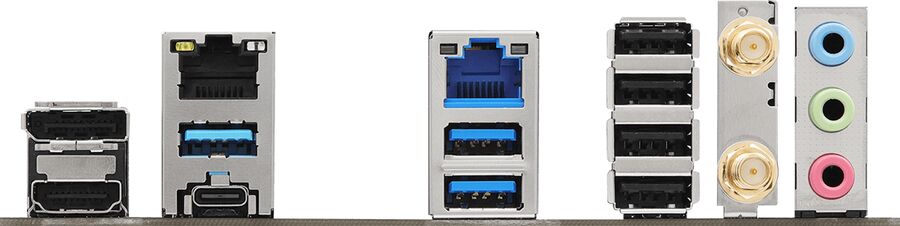

External Connections

USB 2.0 Quantity 4

USB 3.2 Gen 1 (Type-A) Quantity 2

USB 3.2 Gen 2 (Type-A) Quantity 1

USB 3.2 Gen 2 (Type-C) Quantity 1

Features

RAID Controller

Supported RAID Types RAID 0, RAID 1, RAID 5, RAID 10

Physical Attributes

Width 170 mm

Height 170 mm

Product Codes

Manufacturer Codes 90-MXBQQ-A0UAYZ, B860I WIFI, 90-MXBQQ0-A0UAYZ

Barcodes 4711581490321
